DMR Professional radio

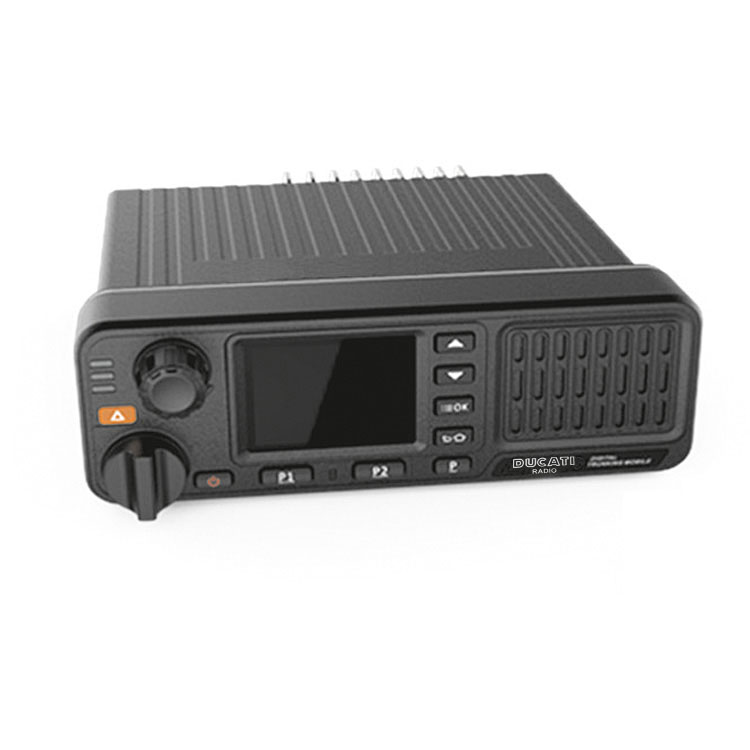

Mobile digital radio, available in VHF and UHF bands
Models available
-
Main features
-
Optional features
-
Resources
|
General |
||||
|
Communication protocol standards |
DMR Digital trunking ETSI-TS102 361 -1,-2,-3 |
|||
|
PDT Digital trunking GA/T1056,1057,L1058,1059 |
||||
|
Frequencies |
136-174MHz*;350-400MHz; 400-470MHz;450-520MHz |
|||
|
Channel Capacity |
1024 |
|||
|
Zone Capacity |
64 |
|||
|
Channel Spacing |
12.5KHz/20KHz/25KHz |
|||
|
Operating Voltage |
13.6 V ±15% |
|||
|
Current Drain |
Standby |
< 0.6A |
||
|
Receive |
< 2.0A |
|||
|
Transmit |
5W |
<5A |
||
|
25W |
<8A |
|||
|
45W/50W |
<12A |
|||
|
Frequency Stability |
±0.5 ppm |
|||
|
Antenna Impedance |
50Ω |
|||
|
Dimensions (H×W×D) |
60*168*175 mm |
|||
|
Weight |
1.8Kg |
|||
|
LCD Display |
Transflective TFT LCD 2.2 inch,320*240pixels |
|||
|
Environmental Specifications |
||||
|
Operating Temperature |
-30℃ ~ +60℃ |
|||
|
Storage Temperature |
-40℃ ~ +85℃ |
|||
|
ESD |
IEC 61000-4-2 (Level 4) ±8kV(contact) ±15kV (air) |
|||
|
American Military Standard |
MIL-STD-810 C/D/E/F/G |
|||
|
Dust & Water Intrusion |
IP67/IP54 MIL-STD |
|||
|
Humidity & Shock & Vibration |
Per MIL-STD-810 C/D/E/F/G Standard |
|||
|
GPS |
||||
|
Accuracy specs are for long-term tracking(95th percentile values>5 satellites visible at a nominal -130dBm signal strength) |
||||
|
TTFF (Time To First Fix) Cold Start |
< 1 minute |
|||
|
TTFF (Time To First Fix) Hot Start |
< 10 seconds |
|||
|
Horizontal Accuracy |
< 10 meters |
|||
|
Remark:All specifications are subject to change without prior notice. |
||||
|
Receiver |
||||
|
Sensitivity |
Analog |
0.3μV（12dB SINAD） |
||
|
0.22μV（Typical) (12dB SINAD） |
||||
|
0.4μV（20dB SINAD） |
||||
|
Digital |
0.3μV/BER5% |
|||
|
Adjacent Channel Selectivity |
TIA-603 |
65dB @ 12.5KHz / 75dB @ 20/25KHz |
||
|
ETSI |
60dB @ 12.5KHz / 70dB @ 20/25KHz |
|||
|
Intermodulation |
TIA-603 |
75dB @ 12.5/20/25KHz |
||
|
ETSI |
70dB @ 12.5/20/25KHz |
|||
|
Spurious Response Rejection |
TIA-603 |
75dB @ 12.5/20/25KHz |
||
|
ETSI |
70dB @ 12.5/20/25KHz |
|||
|
Blocking |
TIA-603/ETSI |
90dB/84dB |
||
|
Hum and Noise |
40dB @ 12.5KHz;43dB @ 20KHz;45dB @ 25KHz |
|||
|
Rated Audio Power Output |
Internal (@20 ohm load) |
3W |
||
|
Externa(@8 ohm load) |
7.5W |
|||
|
Rated Audio Distortion |
≤3% |
|||
|
Audio Response |
+1 ~ -3 dB |
|||
|
Conducted Spurious Emission |
< -57dBm |
|||
|
Transmitter |
||||
|
RF Power Output |
Low-power |
UHF(400-470MHz): 5-25W; |
||
|
UHF(450-520MHz): 5-25W |
||||
|
UHF(350-400MHz): 5-25W; |
||||
|
VHF(136-174MHz): 5-25W |
||||
|
High-power |
UHF(400-470MHz): 5-45W; |
|||
|
UHF(450-520MHz): 5-45W; |
||||
|
UHF(350-400MHz): 5-45W; |
||||
|
VHF(136-174MHz): 5-50W |
||||
|
FM Modulation |
11K0F3E @ 12.5KHz;14K0F3E @ 20KHz;16K0F3E @ 25KHz |
|||
|
4FSK Digital Modulation |
12.5KHz Data Only：7K60FXD |
|||
|
12.5kHz Data & Voice：7K60FXW |
||||
|
Conducted/Radiated Emission |
-36dBm<1GHz |
|||
|
-30dBm>1GHz |
||||
|
Modulation Limiting |
±2.5KHz @ 12.5KHz |
|||
|
±4.0KHz @ 20KHz |
||||
|
±5.0KHz @ 25KHz |
||||
|
FM Hum & Noise |
40dB @ 12.5KHz |
|||
|
43dB @ 20KHz |
||||
|
45dB @ 25KHz |
||||
|
Adjacent Channel Power |
60dB @ 12.5KHz |
|||
|
70dB @ 20/25KHz |
||||
|
Audio Response |
+1 ~ -3 dB |
|||
|
Audio Distortion |
≤3 % |
|||
